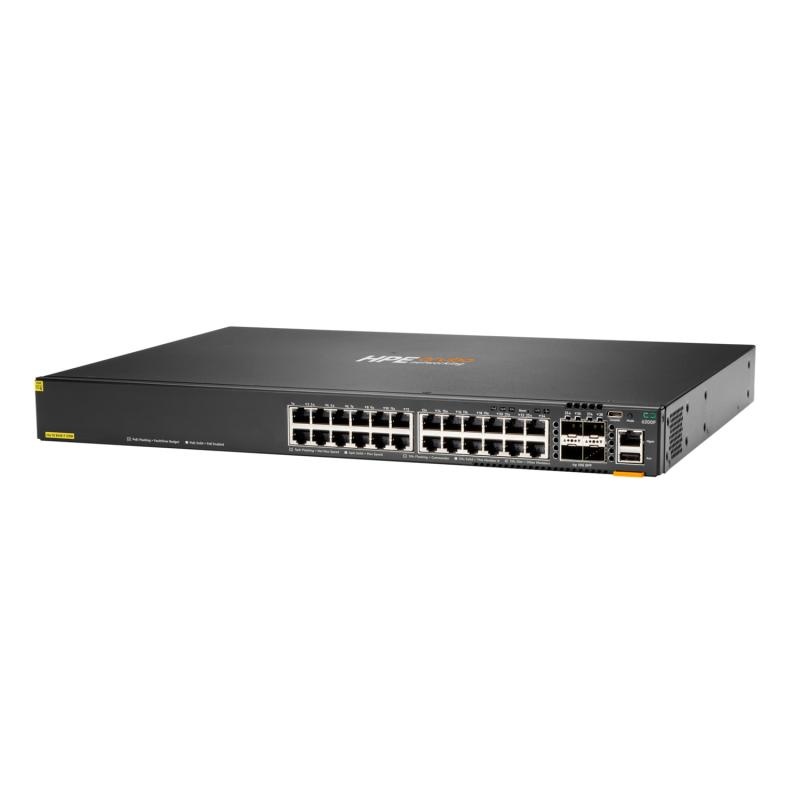

HPE Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ 370W Switch

Descriere

Lifecycle

• Obsolete Date 30-06-2025
• End of support date 31-12-2104

Specifications

• Stacking capabilities 8 members
• Weight 4.90 kg
• Product dimensions (imperial) 1.73 x 17.4 x 12.9 in
• Product dimensions (metric) 4.39 x 44.2 cm x 32.7 cm
• Power supply name Fixed power supply (500W) Up to 370W of Class 4 PoE Power
• Memory and processor Quad Core ARM Cortex™ A72 @ 1.8 GHz
• Power consumption 65W at 230 VAC
• Weight 10.80 lbs
• PoE capability 370W
• Input voltage 100V-120V/200V-240V
• Throughput Up to 95.2 Mpps
• Routing/switching capacity 128 Gbps
• Latency 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec

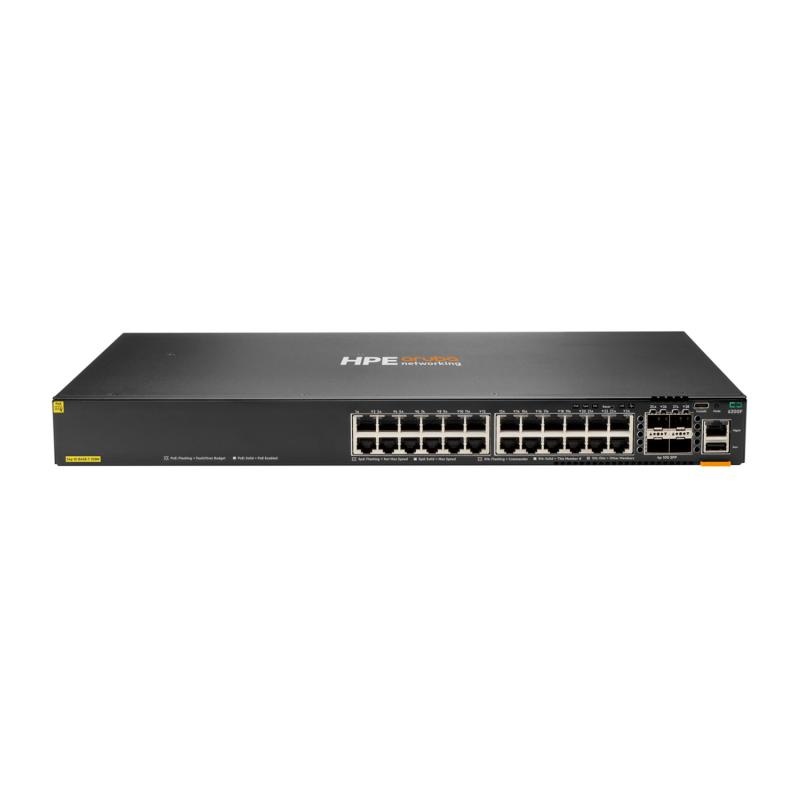

• Ports 24x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App
• Warranty Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ product-warranties/ for warranty and support information included with your product purchase.

Quickspecs

• QuickSpecs (PDF)
• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs

Overview

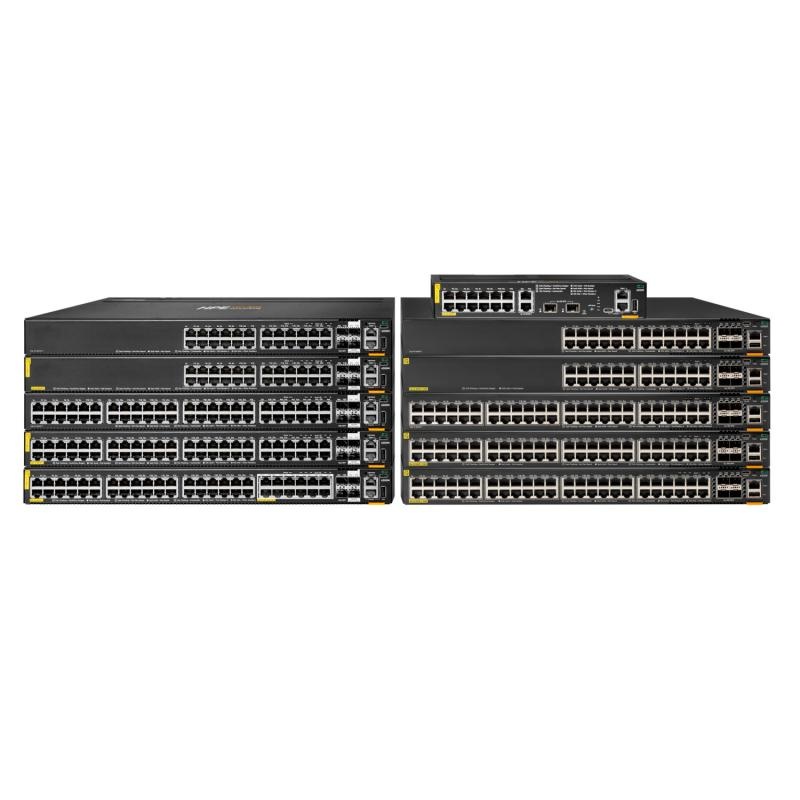

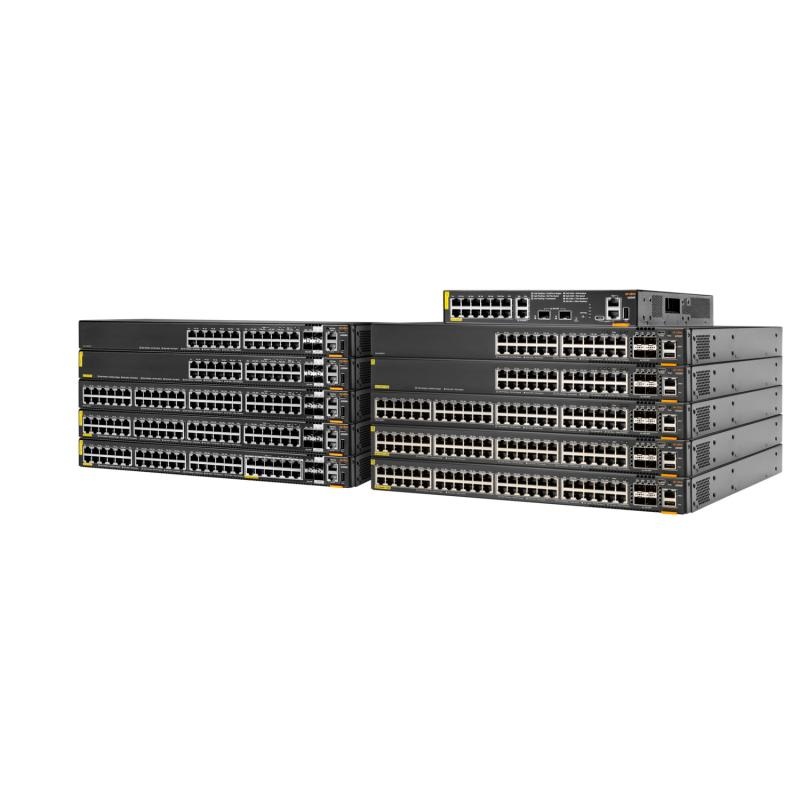

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.

What's new

• Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
• Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
• Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
• Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
• Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
• Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.

Features

Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.

The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.

Performance and Power

Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.

Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

Automation and Analytics

The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.

Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.

The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.

Aruba NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.

The Aruba CX Mobile App simplifies connecting, stacking, and managing HPE Aruba Networking CX 6200 switches. Switch information can be imported into Aruba NetEdit for simplified configuration management and to continuously validate the conformance of configurations anywhere in the network.

Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.

The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.

Smarter Segmentation

Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.

Compatible products

• HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver
• HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver
• HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver
• HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver
• HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver
• HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver
• HPE Aruba Networking 10G SFP+ LC LRM 220m OM2 MMF Transceiver
• HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver
• HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
• HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
• HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit
• HPE 2.5M C15 to C14 Pwr Cord
• HPE Aruba Networking X371 12VDC 250W 100-240VAC Power Supply
• HPE Aruba Networking X372 54VDC 680W 100-240VAC Power Supply
• HPE Aruba Networking X372 54VDC 1050W 110-240VAC Power Supply
• HPE Aruba Networking 2930F 8G PoE+ 2SFP+ Switch
• ARUBA X2C2 RJ45 TO DB9 CONSOLE CABLE
• ARUBA NETEDIT SINGLE NODE 1YR SUB E-STU
• ARUBA NETEDIT SINGLE NODE 3YR SUBSCRIPTI
• HPE Aruba Networking X751 Front to Back Fan Tray
• HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch
• HPE Aruba Networking Central Switch Class-2 Foundation 1 year Subscription E-STU
• HPE Aruba Networking Central Switch Class-2 Foundation 3 year Subscription E-STU
• HPE Aruba Networking USB-A reversible to USB-C PC-to-Switch 3m Cable
• ARUBA USB-C TO USB-C PC-TO-SWITCH CABLE
