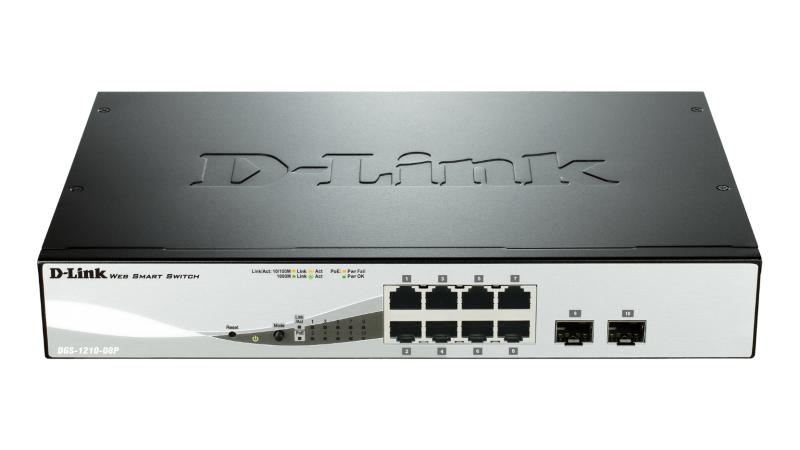

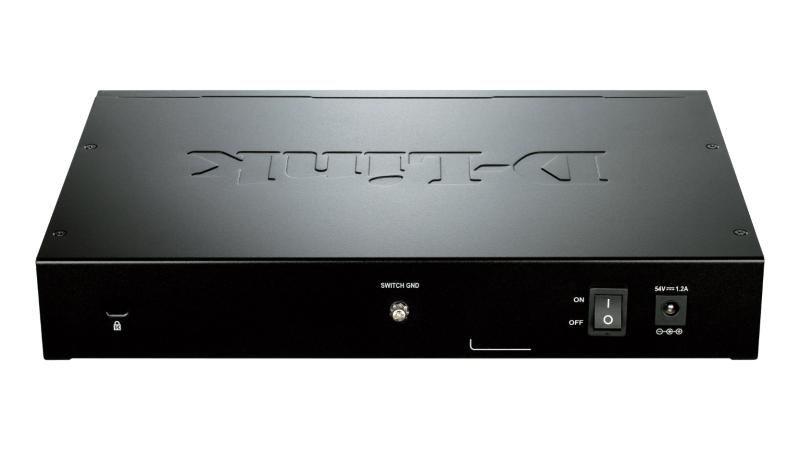

Switch D-Link DGS-1210-08P, 8 port, 10/100/1000 Mbps

D-LINK
1.436,99 RON
Costurile de livrare nu sunt incluse
D-LINK
Cod produs - SKU DGS-1210-08P
Adauga la Favorite

Descriere

Numar porturi

8x RJ-45
Porturi

8x RJ45
2x SFP
Viteza de transfer

10/100/1000 Mbps
Putere consumata

60W
Alimentare

10 to 240 VAC
PoE

Da
PoE Budget

45 W
Dimensiuni

280 x 180 x 44 mm
Montare in rack

19 inch
Functii LED

- Power (per device)
- Link/Activity/Speed/PoE (per 10/100/1000Base-T port)
- Link/Activity/Speed (per SFP port)
- Button to switch LED display mode between PoE and Link/Activity
Memorie Buffer

6MB
Adrese MAC

16K

Detalii

SKU
DGS-1210-08P
Categorii
Switch-uri
Brand
D-LINK
IGMP snooping
Yes
Total Power over Ethernet (PoE) budget
65 W
Forwarding rate
14.88 Mpps
Rack mounting
Yes
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Auto MDI/MDI-X
Yes
Jumbo frames support
Yes
Switching capacity
20 Gbit/s
Jumbo frames
10000
Packet buffer memory
4.1 MB
Store-and-forward
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Power source
DC
Stackable
Yes
Switch layer
L2/L3
Switch type
Managed
Multicast support
Yes
Port mirroring
Yes
10G support
Yes
Broadcast storm control
Yes
Link aggregation
Yes
Power over Ethernet plus (PoE+) ports quantity
8
DHCP features
DHCP server, DHCP client
Heat dissipation
279.59 BTU/h
SFP module slots quantity
2
SFP+ module slots quantity
2
Static port security
Yes
SSH/SSL support
Yes
Spanning tree protocol
Yes
Half duplex
Yes
Head-of-line (HOL) blocking
Yes
LAN port type
Gigabit
Master (outer) cases per pallet (sea)
54 pc(s)
Products per pallet (air)
180 pc(s)
Products per pallet (sea)
270 pc(s)
Pallet height (sea)
2.04 m
Pallet gross width
120 cm
Pallet gross length
110 cm
Shipping (inner) case width
34.6 cm
Shipping (inner) case height
31.7 cm
Shipping (inner) case length
38.2 cm
Shipping (inner) case net weight
10.8 kg
Pallet gross weight (air)
436.1 kg
Master (outer) cases per pallet (air)
36 pc(s)
Pallet height (air)
140.3 cm
Pallet gross weight (sea)
644.9 kg
Shipping (inner) case gross weight
11.6 kg
Products per shipping (inner) case
5 pc(s)
Cable management
Yes
Power LED
Yes
Packet transfer speed
14.9 Mp/s
Data link protocols
IP
Product colour
Black
Quality of Service (QoS) support
Yes
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 C
Storage temperature (T-T)
-20 - 70 C
Package height
72 mm
Package depth
331 mm
Package width
288 mm
MAC address filtering
Yes
Width
280 mm
Height
44 mm
Depth
126 mm
Storage relative humidity (H-H)
0 - 95%
Package weight
2.17 kg
Weight
950 g
Management protocols
SNMP, RMON
Certification
CE Class A
Networking standards
IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af
Power over Ethernet (PoE)
Yes
LED indicators
Yes
Web-based management
Yes
System event log
Yes
Safety
cUL, LVD
MAC address table
8000 entries
Input voltage
54 V
Power consumption (max)
81.9 W
Access Control List (ACL)
Yes
VLAN support
Yes
Power consumption (typical)
2.5 W
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Harmonized System (HS) code
85176990
Mean time between failures (MTBF)
729258 h
Full duplex
Yes
Flow control support
Yes
