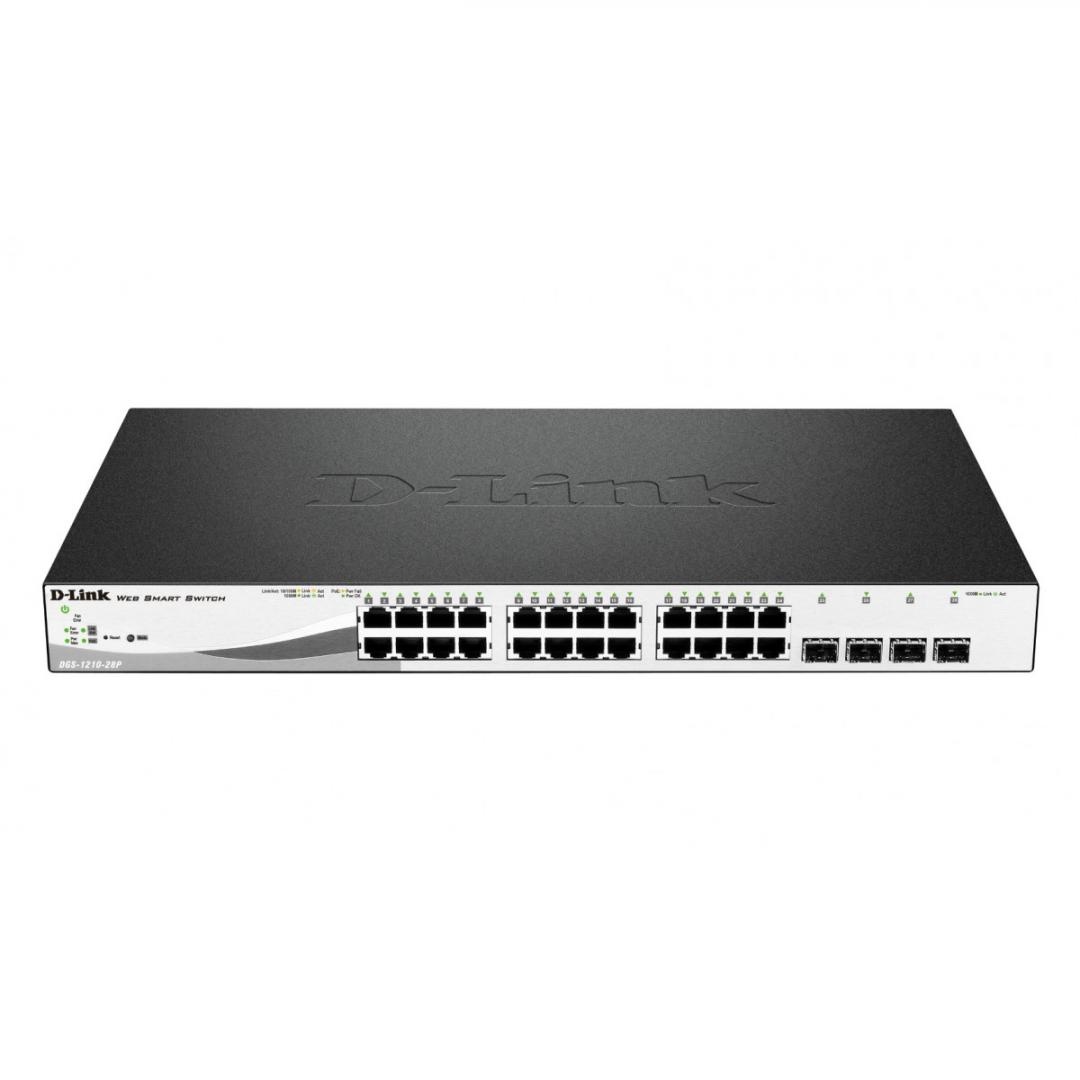

Switch D-link DGS-1210-28MP, 28 Port, 10/100/1000 Mbps

D-LINK
4.665,99 RON
Costurile de livrare nu sunt incluse
D-LINK
Cod produs - SKU DGS-1210-28MP
Adauga la Favorite

Descriere

Numar porturi

28x RJ-45
Porturi

24x RJ45
4x SFP
Viteza de transfer

10/100/1000 Mbps
Management

Da
Putere consumata

33.1 W
Alimentare

100 to 240 VAC 50/60 Hz internal universal power supply
PoE

Da
PoE Budget

454.4 W
Dimensiuni

440 x 250 x 44 mm
Greutate

3.86 kg
Montare in rack

1U
Functii LED

- Power (per device)
- PoE Max (per Device)
- Link/Activity/Speed (per 10/100/1000Base-T port)
- Link/Activity/Speed (per SFP port)
- Fan (per device)
- Button to switch
- LED display mode between
- PoE and Link/Activity
Memorie Buffer

41.7 Mpps
Adrese MAC

16K
Altele

4x SFP

Detalii

SKU
DGS-1210-28MP
Categorii
Switch-uri
Brand
D-LINK
AC input voltage
100 - 240 V
IGMP snooping
Yes
Fiber optic connector
SFP
Forwarding rate
41.7 Mpps
Rack mounting
Yes
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Auto MDI/MDI-X
Yes
Jumbo frames support
Yes
Switching capacity
56 Gbit/s
Jumbo frames
9216
Packet buffer memory
1.5 MB
Store-and-forward
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Auto-negotiation
Yes
Power source
AC/DC
Switch layer
L2
Switch type
Managed
Multicast support
Yes
Virtual LAN features
Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Port mirroring
Yes
Number of VLANs
4094
10G support
No
Link aggregation
Yes
Loop protection
Yes
DHCP features
DHCP client
Heat dissipation
850.58 BTU/h
Memory type
DDR3-SDRAM
SFP module slots quantity
4
SFP+ module slots quantity
4
Console port
RJ-45
IP-MAC-Port binding
Yes
SSH/SSL support
Yes
Traffic classification
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Number of fans
2 fan(s)
IP routing
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
Number of static routes
32
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Noise level
52.4 dB
Number of queues
8
Fiber ethernet cabling technology
1000Base-X
BPDU filtering/protection
Yes
Access Control List (ACL) rules
256
Electromagnetic compatibility
FCC A, CE A, VCCI, C-Tick, BSMI, CCC
LAN port type
Gigabit
Master (outer) cases per pallet (sea)
40 pc(s)
Products per pallet (air)
72 pc(s)
Products per pallet (sea)
120 pc(s)
Pallet height (sea)
2.1 m
Pallet gross width
120 cm
Pallet gross length
110 cm
Shipping (inner) case width
29.5 cm
Shipping (inner) case height
39.3 cm
Shipping (inner) case length
53.9 cm
Shipping (inner) case net weight
15.6 kg
Pallet gross weight (air)
419.7 kg
Master (outer) cases per pallet (air)
24 pc(s)
Pallet height (air)
131.4 cm
Pallet gross weight (sea)
682.9 kg
Shipping (inner) case gross weight
16.4 kg
Products per shipping (inner) case
3 pc(s)
Form factor
1U
Product colour
Black, Grey
Quality of Service (QoS) support
Yes
Flash memory
32 MB
Built-in processor
Yes
Security algorithms
802.1x RADIUS, SNMP, SSH
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-5 - 50 C
Storage temperature (T-T)
-40 - 70 C
Package height
92 mm
Package depth
521 mm
Package width
365 mm
Width
440 mm
Height
44 mm
Depth
210 mm
Storage relative humidity (H-H)
5 - 90%
Package weight
5.18 kg
AC input frequency
50 - 60 Hz
Weight
3.86 kg
Certification
IEC61000-4-5, RoHS
Power over Ethernet (PoE)
Yes
LED indicators
Activity, Fan fail, Link, Power, Speed
Web-based management
Yes
System event log
Yes
Safety
CCC, CE LVD, UL/cUL
MAC address table
16000 entries
Access Control List (ACL)
Yes
VLAN support
Yes
Power consumption (typical)
27.49 W
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) ports quantity
24
Harmonized System (HS) code
85176990
Mean time between failures (MTBF)
294101 h
Full duplex
Yes
Flow control support
Yes
