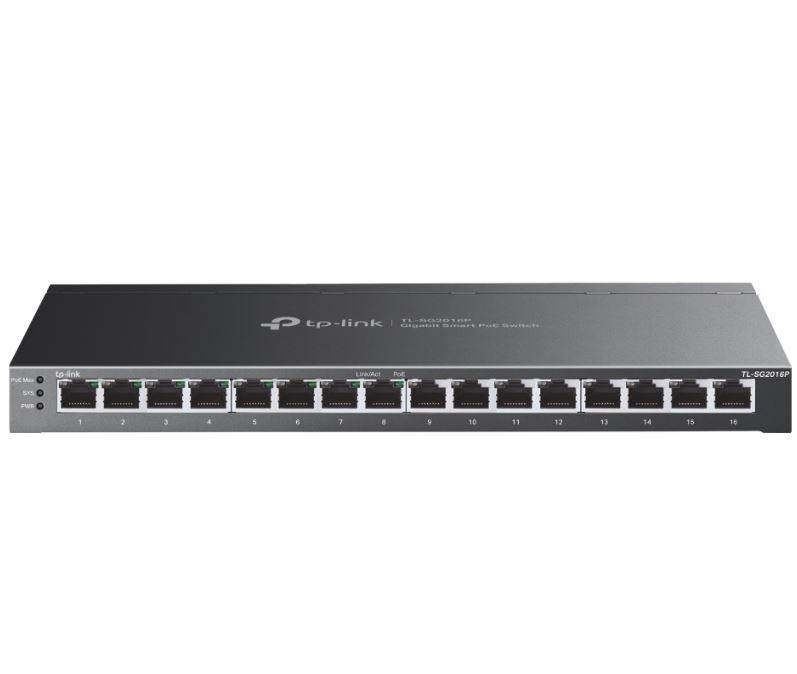

"JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports SPEC: 802.3af/at, 120 W PoE Power, Desktop Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping,
1.079,99 RON
1.581,77 RON
Costurile de livrare nu sunt incluse
Detalii
SKU
TL-SG2016P
Categorii
Brand
IGMP snooping
Yes
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Total Power over Ethernet (PoE) budget
120 W
Forwarding rate
23.81 Mpps
Rack mounting
Yes
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Auto MDI/MDI-X
Yes
Jumbo frames support
Yes
Switching capacity
32 Gbit/s
Jumbo frames
9000
Packet buffer memory
4.1 MB
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation
Yes
Power source
DC/PoE
Stackable
No
Cloud-managed
Yes
Switch layer
L2/L2+
Switch type
Managed
Multicast support
Yes
Virtual LAN features
Multicast VLAN, Tagged VLAN, Voice VLAN
Port mirroring
Yes
Number of VLANs
4000
10G support
No
Broadcast storm control
Yes
Link aggregation
Yes
Power over Ethernet plus (PoE+) ports quantity
8
DHCP features
DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Layer
Layer-2
ARP inspection
Yes
Heat dissipation
499.98 BTU/h
Fanless
Yes
IP-MAC-Port binding
Yes
SSH/SSL support
Yes
Configuring Location Settings (CLI)
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Number of queues
8
GARP VLAN Registration Protocol (GVRP)
Yes
BPDU filtering/protection
Yes
MIB support
RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
MAC address entries
Dynamic MAC address entries, Static MAC address entries
Ethernet LAN data rates
10,100,1000 Mbit/s
Quality of Service (QoS) support
Yes
Security algorithms
EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 C
Storage temperature (T-T)
-40 - 70 C
Cables included
AC
MAC address filtering
Yes
Width
286 mm
Height
25.4 mm
Depth
111.7 mm
Storage relative humidity (H-H)
5 - 90%
Certification
CE, FCC, RoHS
Supported network protocols
ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
Firmware upgradeable
Yes
Power over Ethernet (PoE)
Yes
LED indicators
PoE, Power, System
Web-based management
Yes
System event log
Yes
MAC address table
8000 entries
Rackable
No
LAN-Port-Type
Gigabit
LAN-Ports
16
Redundant-PSU
No
Power consumption (max)
146.5 W
Access Control List (ACL)
Yes
DC input voltage
53.5 V
VLAN support
Yes
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Flow control support
Yes
