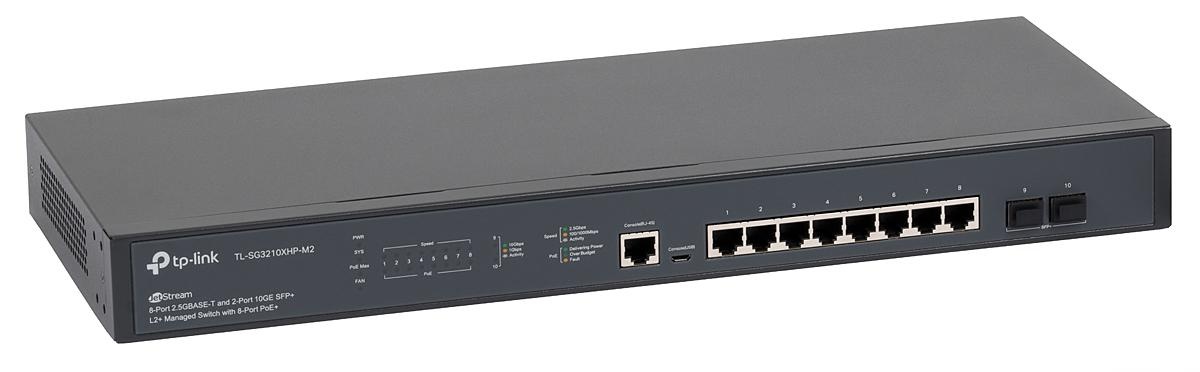

"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration
3.461,99 RON
3.462,11 RON
Costurile de livrare nu sunt incluse
Detalii
SKU
TL-SG3210XHP-M2
Categorii
Brand
AC input voltage
100 - 240 V
IGMP snooping
Yes
Total Power over Ethernet (PoE) budget
240 W
Forwarding rate
59.52 Mpps
Rack mounting
Yes
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Jumbo frames support
Yes
Switching capacity
80 Gbit/s
Jumbo frames
9000
Packet buffer memory
12 MB
Power supply included
Yes
Power source
AC
Stackable
No
Cloud-managed
Yes
Switch layer
L2
Switch type
Managed
Multicast support
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Port mirroring
Yes
Number of VLANs
4000
10G support
Yes
Broadcast storm control
Yes
Link aggregation
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Loop protection
Yes
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Layer
Layer-2
ARP inspection
Yes
Heat dissipation
996.35 BTU/h
SFP module slots quantity
2
SFP+ module slots quantity
2
Console port
RJ-45/micro-USB
Static port security
Yes
IP-MAC-Port binding
Yes
SSH/SSL support
Yes
Traffic classification
Yes
Configuring Location Settings (CLI)
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Power over Ethernet (PoE) power per port
30 W
Number of fans
2 fan(s)
IP routing
Yes
Authentication type
AAA, TACACS+
Authentication
MAC-based authentication, Port-based authentication
Number of static routes
48
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Number of IP interfaces
16
Multicast Listener Discovery (MLD) snooping
Y
GARP VLAN Registration Protocol (GVRP)
Yes
BPDU filtering/protection
Yes
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
2.5G Ethernet (copper) ports quantity
8
Head-of-line (HOL) blocking
Yes
LAN port type
Gigabit
Form factor
1U
Password protection
Yes
Product colour
Black
Ethernet LAN data rates
100,1000,2500 Mbit/s
Quality of Service (QoS) support
Yes
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 45 C
Storage temperature (T-T)
-40 - 70 C
Cables included
AC
Package height
80 mm
Package depth
250 mm
Package type
Box
Package width
528 mm
MAC address filtering
Yes
Width
440 mm
Height
44 mm
Depth
180 mm
Storage relative humidity (H-H)
5 - 90%
Package weight
2.84 kg
AC input frequency
50/60 Hz
Management protocols
SNMPv1/v2c/v3, SNTP
Certification
CE, FCC, RoHS
Networking standards
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Power over Ethernet (PoE)
Yes
LED indicators
Yes
Web-based management
Yes
Quick start guide
Yes
System event log
Yes
MAC address table
16000 entries
Static route
Yes
Rackable
No
LAN-Ports
8
Redundant-PSU
Yes
Power consumption (max)
292 W
Access Control List (ACL)
Yes
VLAN support
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Power connector
AC-in jack
Harmonized System (HS) code
85176990
Flow control support
Yes
