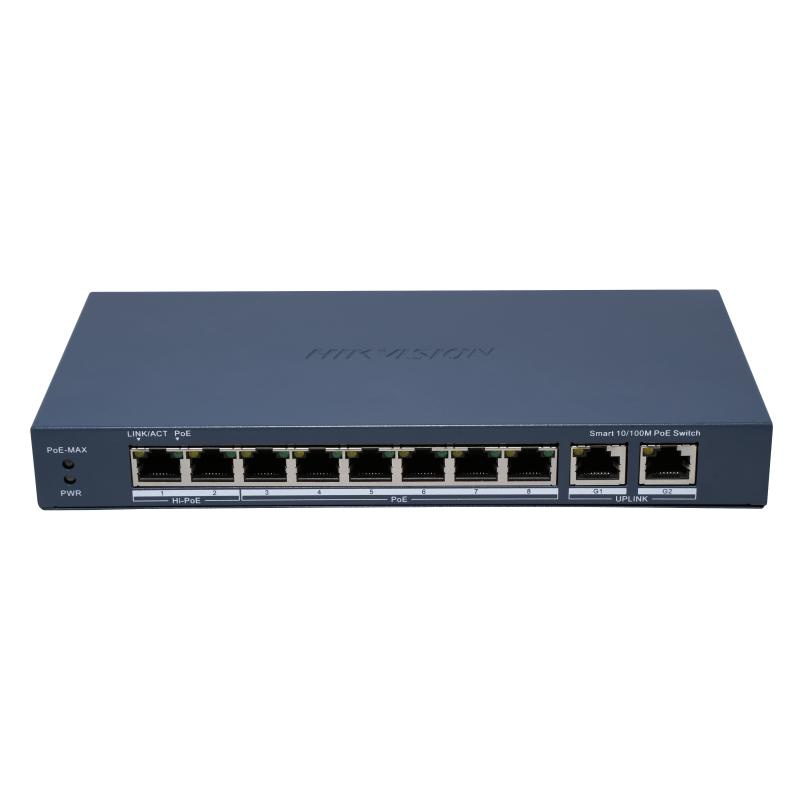

Switch PoE Hikvision DS-3E1310HP-EI(B): 8 x 10/100M PoE Ports, 2 x Gigabit Uplink Ports, 8 porturi PoE maxim 90W, buget PoE 110W, tensiune alimentare 54 VDC, 2.22 A, dimensiuni: 217.6 mm × 27.6 mm × 108.5 mm, greutate: 0.55kg, montare pe birou sau pe
1.047,99 RON
Costurile de livrare nu sunt incluse
Detalii
SKU
DS-3E1310HP-EI(B)
Categorii
Brand
Total Power over Ethernet (PoE) budget
110 W
Forwarding rate
7.14 Mpps
Rack mounting
No
Installed SFP+ modules quantity
0
Fast Ethernet (copper) ports quantity
8
Switching capacity
9.6 Gbit/s
Store-and-forward
Yes
Transmission distance (max)
0.3 km
Gigabit Ethernet (copper) ports quantity
2
Power supply included
Yes
Power source
DC/PoE
Stackable
No
Switch type
Managed
Number of VLANs
4094
10G support
No
Loop protection
Yes
Surge protection
Yes
Surge protection voltage
6 kV
Power over Ethernet (PoE) power per port
30 W
Product colour
Grey
Ethernet LAN data rates
10,100,1000 Mbit/s
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 C
Storage temperature (T-T)
-40 - 85 C
Width
217.6 mm
Height
27.6 mm
Depth
108.5 mm
Storage relative humidity (H-H)
5 - 95%
Package weight
950 g
Weight
550 g
Wall mountable
Yes
International Protection (IP) code
IP40
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Power over Ethernet (PoE)
Yes
Compliance certificates
REACH, RoHS, WEEE
LED indicators
Yes
MAC address table
4000 entries
Housing material
Metal
Power consumption (max)
120 W
DC input voltage
54 V
VLAN support
Yes
Power consumption (typical)
10 W
Input current
2.22 A
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Power connector
DC-in jack
Flow control support
Yes
