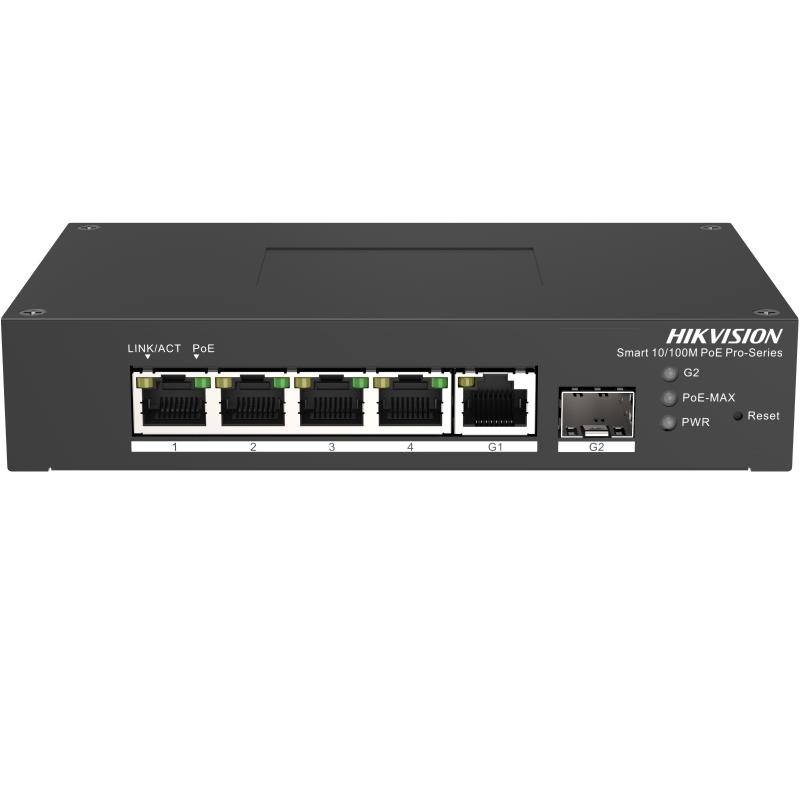

Switch PoE Hikvision DS-3T1306P-SI/HS: 4 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port, PoE: Ports 1 to 4 maxim 30W, buget PoE 60W, tensiune alimentare: 48VDC, 1.36A, dimensiuni: 158.00 mm × 101.20 mm × 31.60 mm, greutate:
903,99 RON
Costurile de livrare nu sunt incluse
Detalii
SKU
DS-3T1306P-SI/HS
Categorii
Brand
Total Power over Ethernet (PoE) budget
60 W
Forwarding rate
357 Mpps
Rack mounting
No
Fast Ethernet (copper) ports quantity
4
Auto MDI/MDI-X
Yes
Switching capacity
48 Gbit/s
Store-and-forward
Yes
Gigabit Ethernet (copper) ports quantity
1
Power supply included
Yes
Power source
DC
Stackable
No
Switch layer
L2
Switch type
Managed
Multicast support
Yes
Port mirroring
Yes
Number of VLANs
4094
10G support
No
Broadcast storm control
Yes
Management
Da
Rate limiting
Yes
Power over Ethernet (PoE) power per port
30 W
Porturi SFP
None
Fiber ports quantity
1
Quality of Service (QoS) support
Yes
Security algorithms
SNMP
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-30 - 65 C
Storage temperature (T-T)
-40 - 85 C
Width
158 mm
Height
101.2 mm
Depth
316 mm
Storage relative humidity (H-H)
5 - 95%
Package weight
1 kg
Weight
400 g
International Protection (IP) code
IP40
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Power over Ethernet (PoE)
Yes
LED indicators
Yes
MAC address table
2000 entries
Housing material
Metal
Input voltage
48 V
Power consumption (max)
65 W
Montare in rack
Nu
PoE
Da
Viteza Transfer
Fast Ethernet
Porturi RJ 45
1
VLAN support
Yes
Power consumption (typical)
5 W
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Power over Ethernet (PoE) ports quantity
4
Full duplex
Yes
Flow control support
Yes
